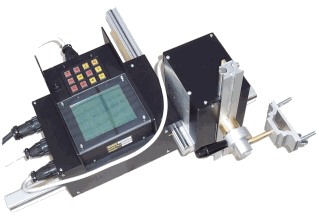

RD 200 U - Universal Welder

- 3D Real time computing for 30 meter.
- Positioning and memorizing while
working at the 1st layer.
- Magnetic field, No-Touch measurement.
- Reverse welding direction for following
layers at horizontal seams.
- Corner-Function for creating of
wall crosses.
- Gas cuttings of any contouring with
up to 1200 3D-Points.
- Easiest handling.

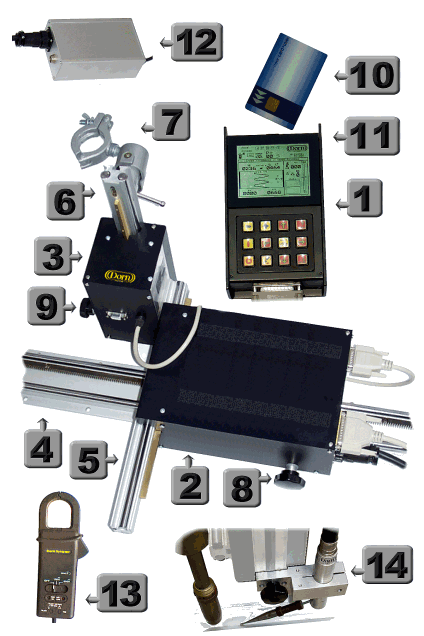

System parts RD 200 U

1 Remote Pendant Control RD100E (Evolution)
2 Drive Unit and Weaver
3 Distance Support
4 Drive Rail, 2 to 30 m
5 Weaver Arm, 40 cm
6 Distance Rail, 30 cm
7 Turn able Gun Holder
8 Mounting Knob Drive Unit
9 Mounting Knob Support
10 Chip-Card Slot and USB/RS232 Port
11 ON/OFF Switch with remoted Power-OFF
12 Power Supply
13 Arc Control (up to 500 Amps) (Option)
14 Electromechanical Sensor (Option)


RD 500 RD 1200 (new: RD 400-B)
RD 1200
RD 1200
easy handling because of linear drive rail (max.3m). ... with turn able cross support for corner welds.

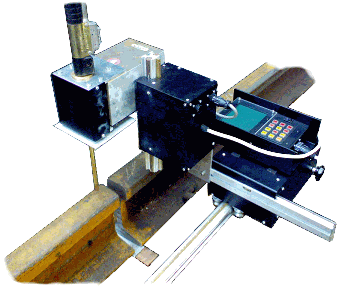

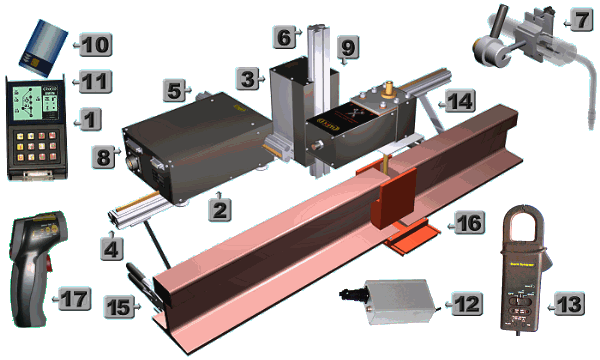

RD 500 ASV - All Surfaces and Joints
1 Remote Pendant Control RD100E (Evolution)
2 Drive Unit and Weaver
3 Distance Support
4 Drive Rail, 2 to 30 m
5 Weaver Arm, 40 cm
6 Distance Rail, 30 cm
7 Turn able Gun Holder
8 Mounting Knob Drive Unit
9 Mounting Knob Support
10 Chip-Card Slot and USB/RS232 Port
11 ON/OFF Switch with remoted Power-OFF
12 Power Supply
13 Arc Control (up to 500 Amps) (Option)
14 Rotary R-Support
15 Fast fixing Clamps
16 Weld Protection
17 Temperature Check

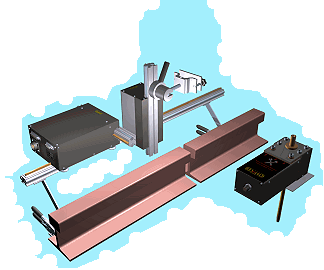

modular and adaptably.

with 4 Axis for Joint Welding



RD 400-X - Systems with XZ-Cross-Support

Replacement for RD1200 turn-able cross-support.
All electronical parts and plugs are included at one place.
Easy mounting at different drive units and maximised functionality.
No additional mechanical parts needed. Different angles and contoures will be computed.

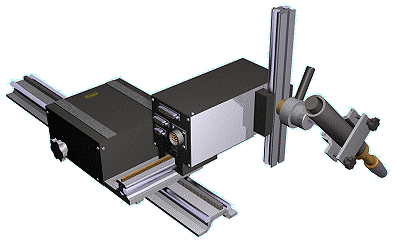

RD 400-B (Box-Rail) RD 400-O (Orbital)
RD400-B
RD400-O

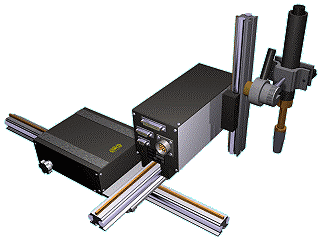

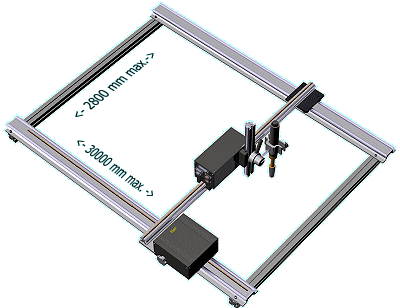

RD 400-L (Linear Rail) RD 400-P (Portal)
RD400-5
RD400-P
